Momentum Lite

$85.00 CAD

Sale Sold out

Shipping calculated at checkout.

Pre-Soldered Connecters Add-On Loose Connectors Pre-Soldered (+$4 CAD)

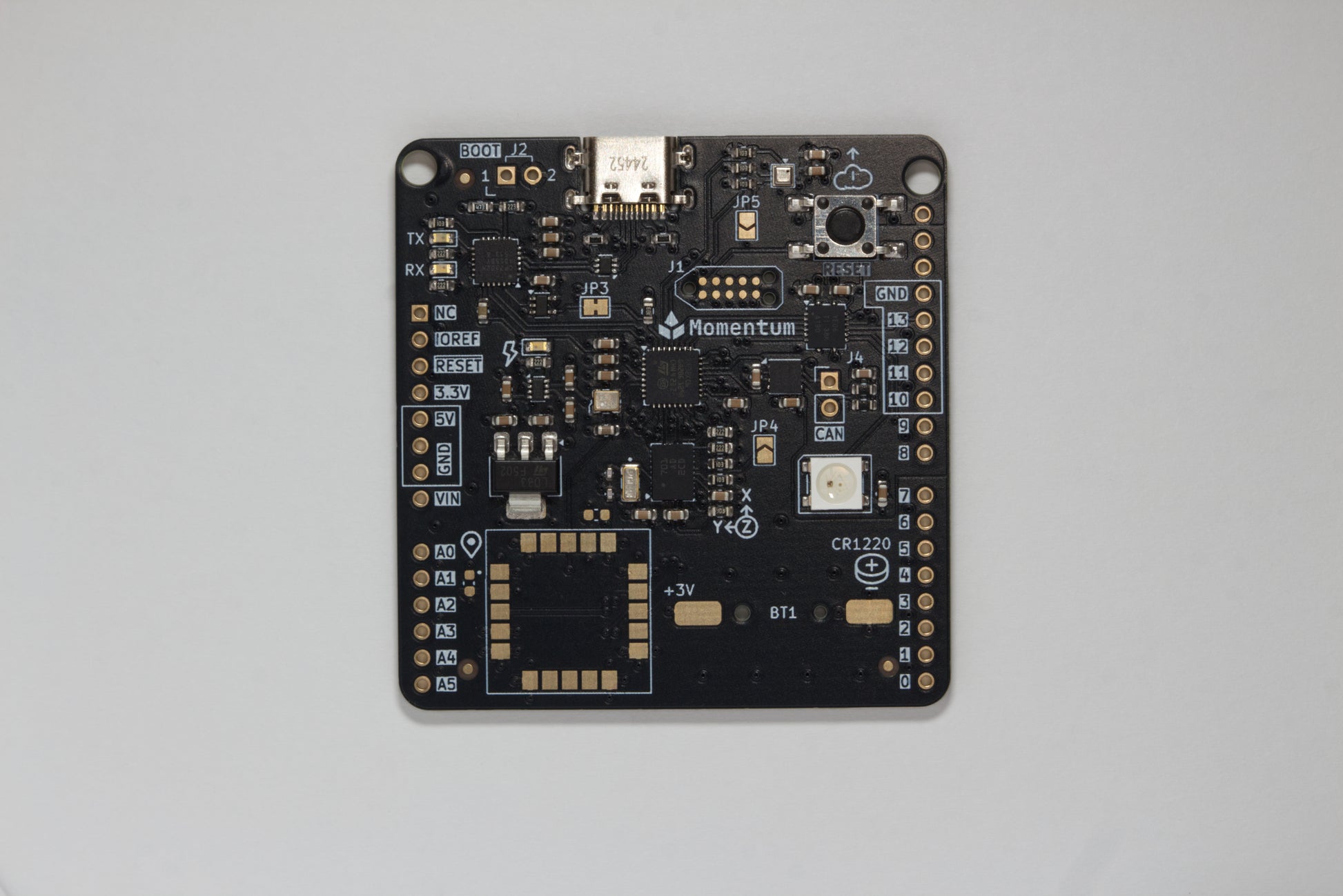

Momentum Lite is a 9-DOF IMU and barometric sensor shield. Momentum Lite is a reduced component version of the Momentum Dev Board, removing GNSS components.

Momentum is a complete sensor shield/dev board including a 9-DOF IMU and barometer processed by an onboard STM32, designed to be compatible with existing development boards such as Arduino Unos, ST Nucleo-64s, Teensys, etc.

Momentum allows for extremely quick and simple integration of motion sensors, crucial for rapid prototyping in robotics and many other STEM projects. For performance limited microcontrollers such as traditional Atmel based Arduino Unos, Momentum allows for previously unseen sensor sample rates which are impossible to replicate without a co-processor.

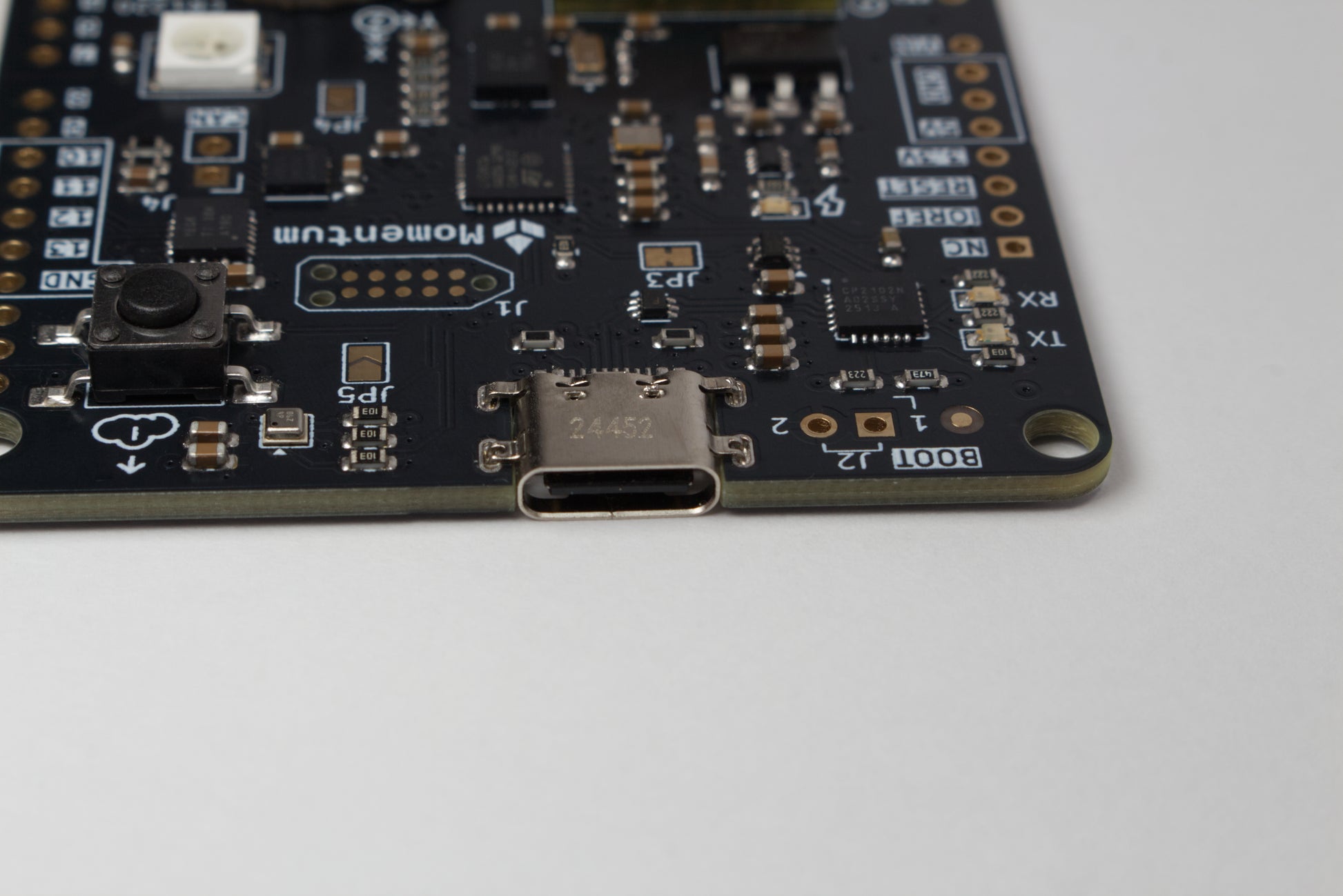

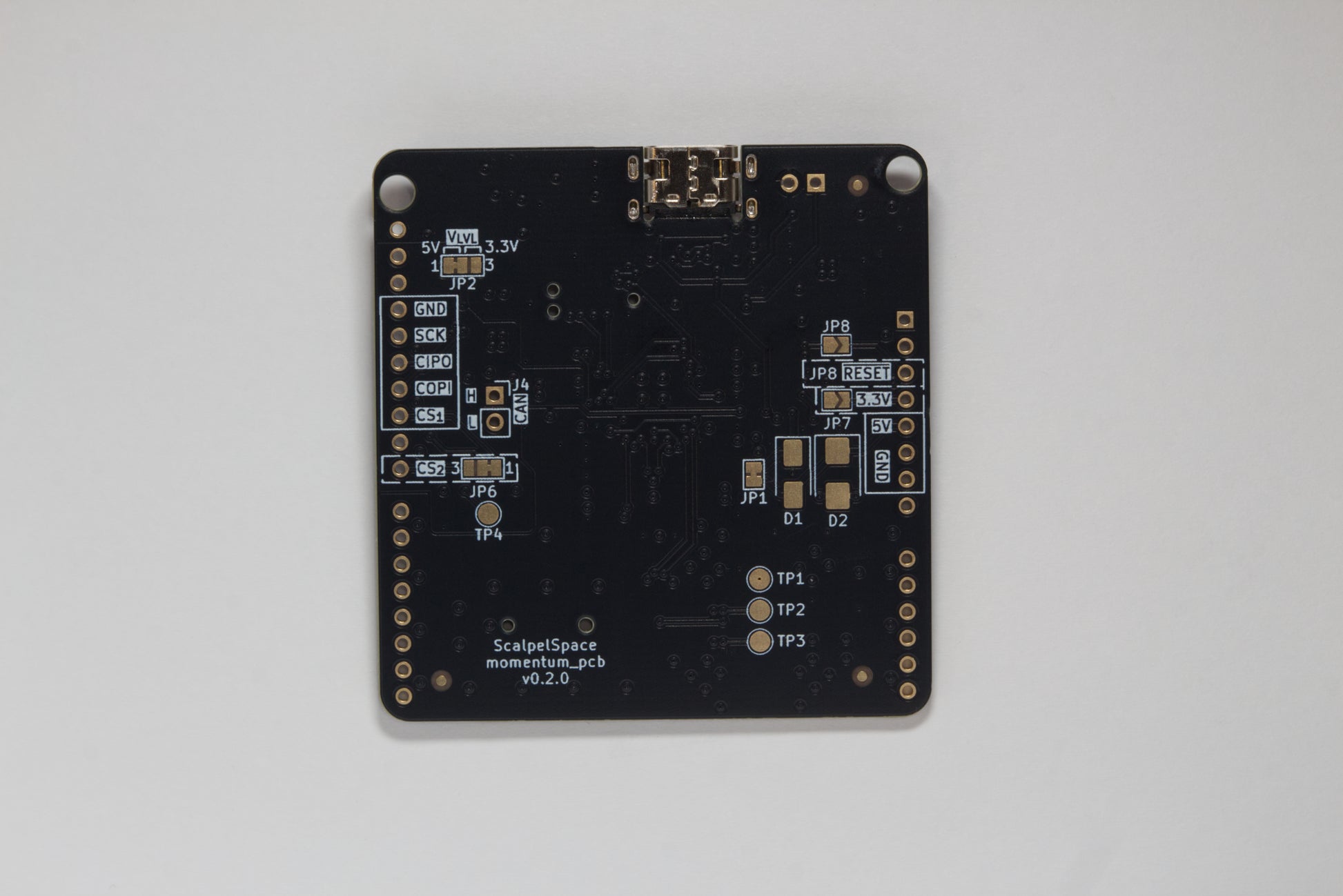

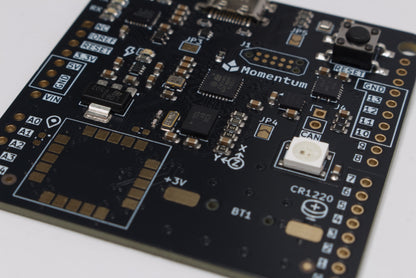

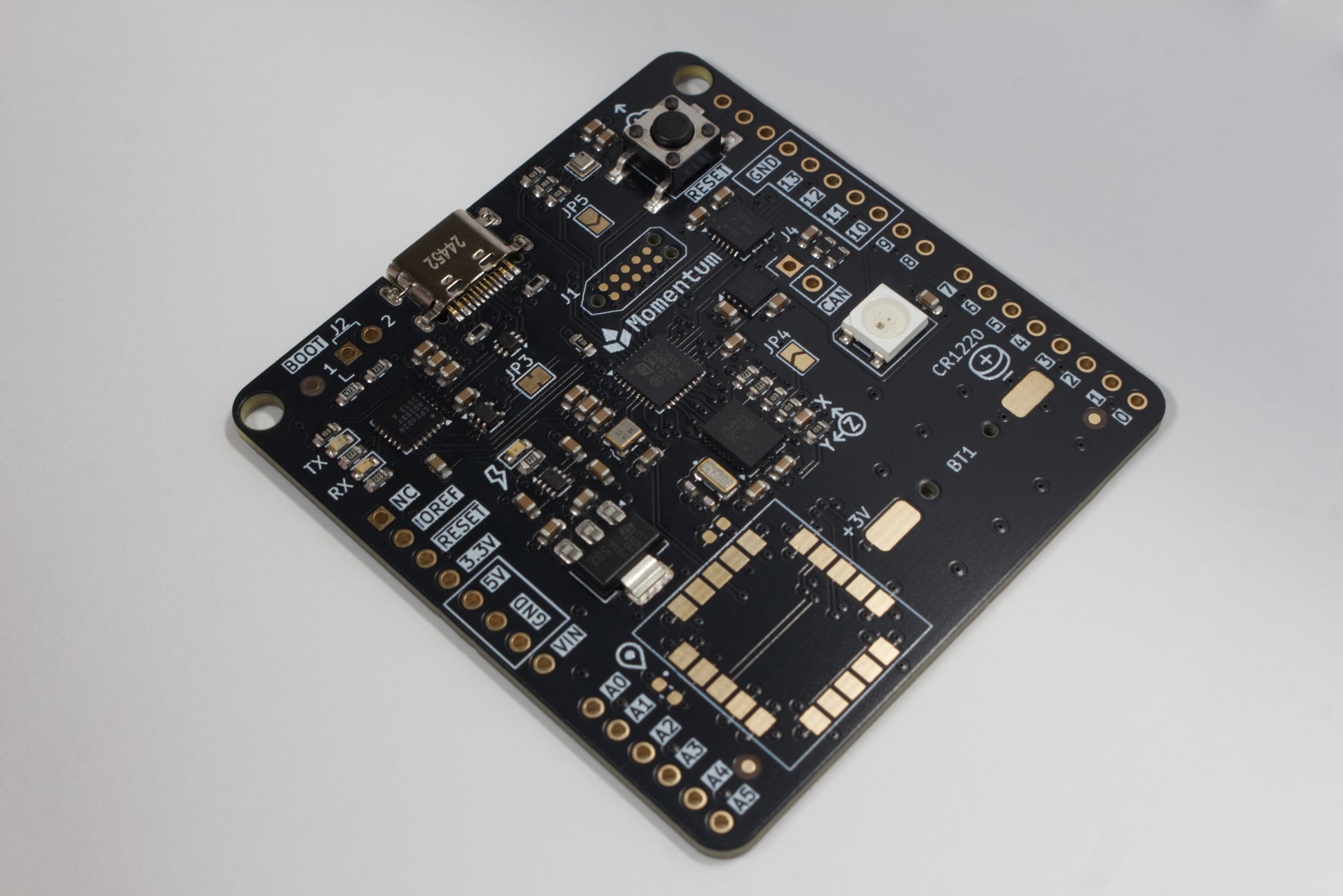

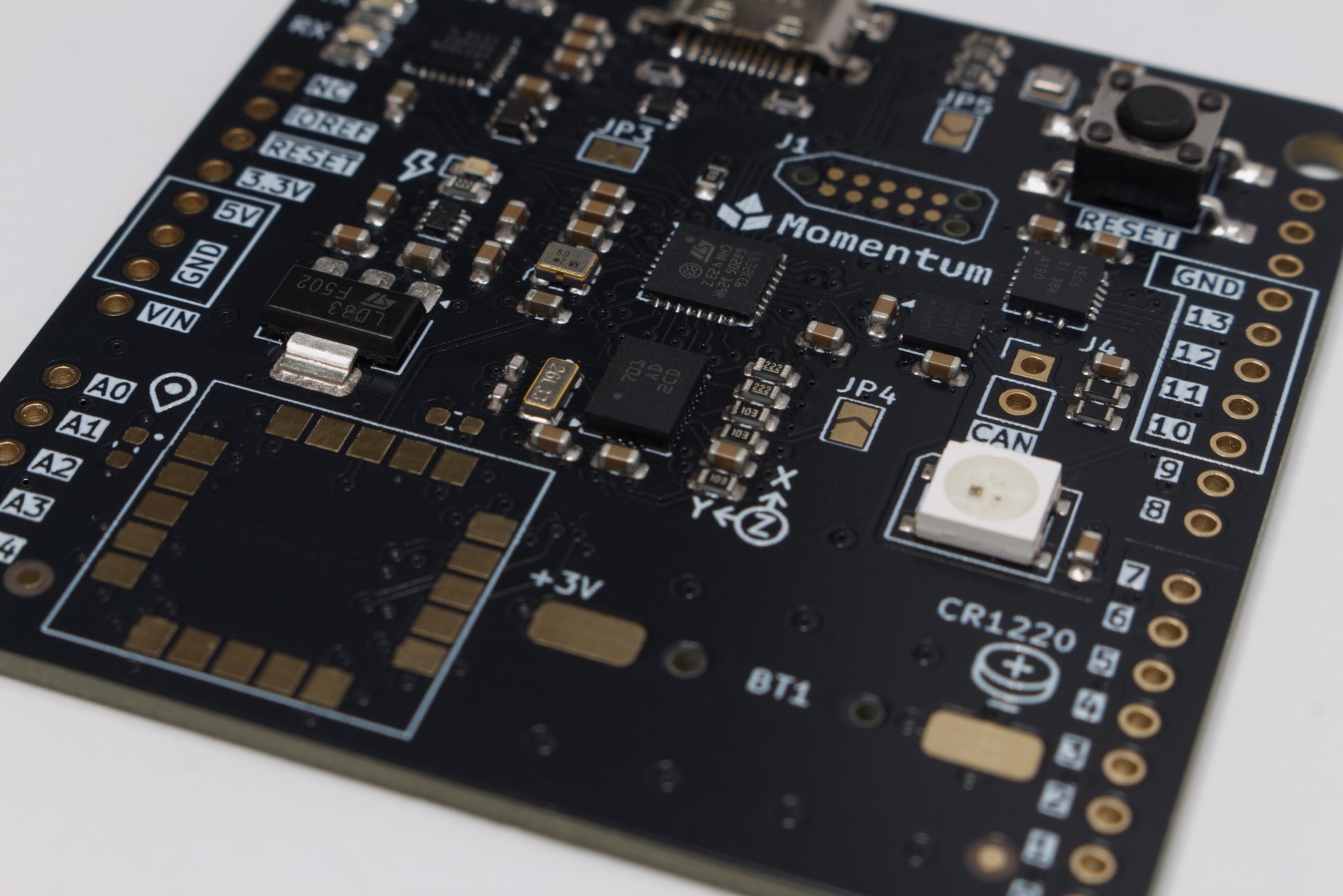

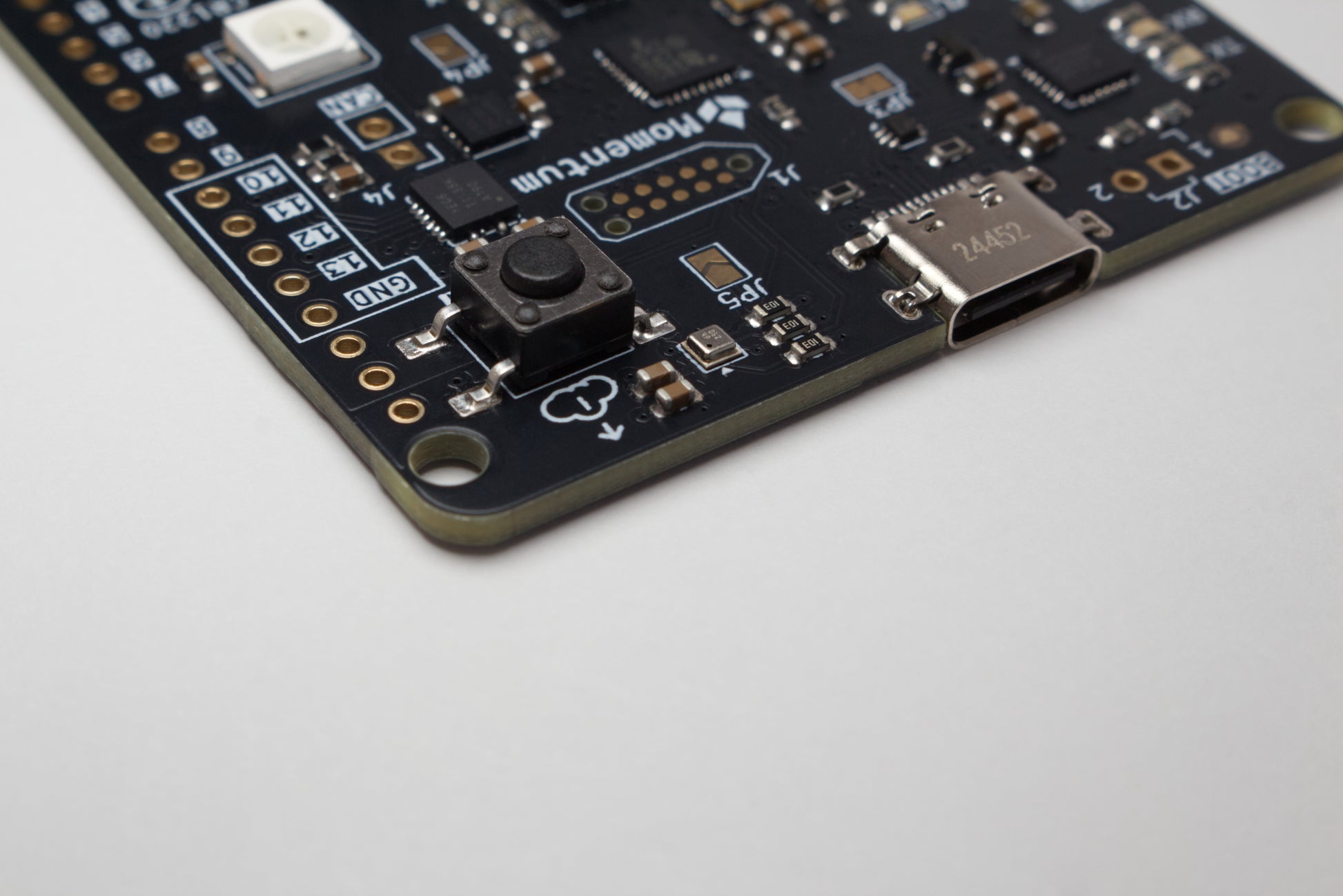

Note: Product may slightly differ from photos.

Core Data Communication via Momentum Firmware Specifications:

Sensor Data	Max Sample Rate [Hz]
BNO086 Acceleration (x, y, z)	200
BNO086 Linear Acceleration (x, y, z)	200
BNO086 Gyroscope (x, y, z)	200
BNO086 Gravity Vector (x, y, z)	200
BNO086 Fused Orientation Quaternion (i, j, k, real)	200
BMP390 Pressure	100
BMP390 Temperature	100

View full details

Details

Intended Use: Non-Consumer, Engineering Tool

This product is designed for non-consumer use. It is intended as an engineering tool for testing and research.

Technical Documentation

Technical documentation can be found on a product's respective github.io website, please see the product description.

GitHub ScalpelSpace Technical Documentation Page: scalpelspace.github.io.

When Will My Order Ship?

Orders are prepared, packaged and shipped within 3 business days. Shipping time estimates can be found at checkout.
